What is IMU tilt compensation in surveying: enhancing accuracy and efficiency

In surveying, accurate measurements are essential for reliable data collection and precise mapping. One technology that has enhanced the surveying industry is IMU tilt compensation. In this article, we will explore what IMU stands for, how it is used in surveying, and the advantages and limitations of IMU tilt compensation in GNSS receivers.

What is an Inertial Measurement Unit or IMU?

An IMU, or Inertial Measurement Unit, is a device that helps measure how much an object is tilted or rotated, as well as detect changes in speed and direction. In other words, what does an IMU do? It measures how an object is moving or positioned. It does this by using a combination of sensors that provide motion information.

Accelerometers in IMU electronics measure changes in speed or velocity. They can detect changes in linear motion, such as speeding up, slowing down, or shaking. When an object moves or tilts, the accelerometers in the IMU can detect these changes and measure the corresponding forces acting on the object. This allows the inertial measurement system to determine the orientation and motion patterns of the object.

Gyroscopes, on the other hand, measure how fast an object is rotating. By providing information about the rate and direction of rotation, gyroscopes in the IMU enable precise tracking and monitoring of an object’s changes in orientation.

Some IMU devices can also include magnetometers that measure the strength and direction of magnetic fields. The IMU magnetometer can help determine the object’s heading or orientation.

Where is IMU used?

An inertial measurement unit (IMU) is used in a wide range of applications, including aerospace, robotics, virtual reality, navigation systems, and surveying. Modern navigation systems and surveying equipment rely on IMUs for accurate positioning and orientation determination.

In surveying, inertial measurement units are often used in GNSS receivers to enhance accuracy by compensating for tilts and rotations of the receiver. This is very helpful because it allows surveyors to measure positions accurately, even if the receiver is not perfectly leveled over the target object.



How does an IMU work in tilt compensation?

IMU tilt compensation in GNSS receivers refers to the ability of the receiver to adjust its measurements to account for the tilt of the device. The IMU device combines the tilt and roll angle measurements from the accelerometers with the angular velocity measurements from the gyroscopes.

However, the IMU output is not the raw data from the sensors. Using special algorithms, the IMU can calculate adjustments to compensate for the tilt angles and ensure accurate position data.

These calculated adjustments are then applied to the GNSS position data. By accounting for the tilt and roll angles, the GNSS receiver can accurately calculate its position even if it is not horizontally level.



What are the benefits of IMU tilt compensation in surveying?

Overall, the tilt compensation feature enables surveying with two main advantages: versatility and time efficiency.

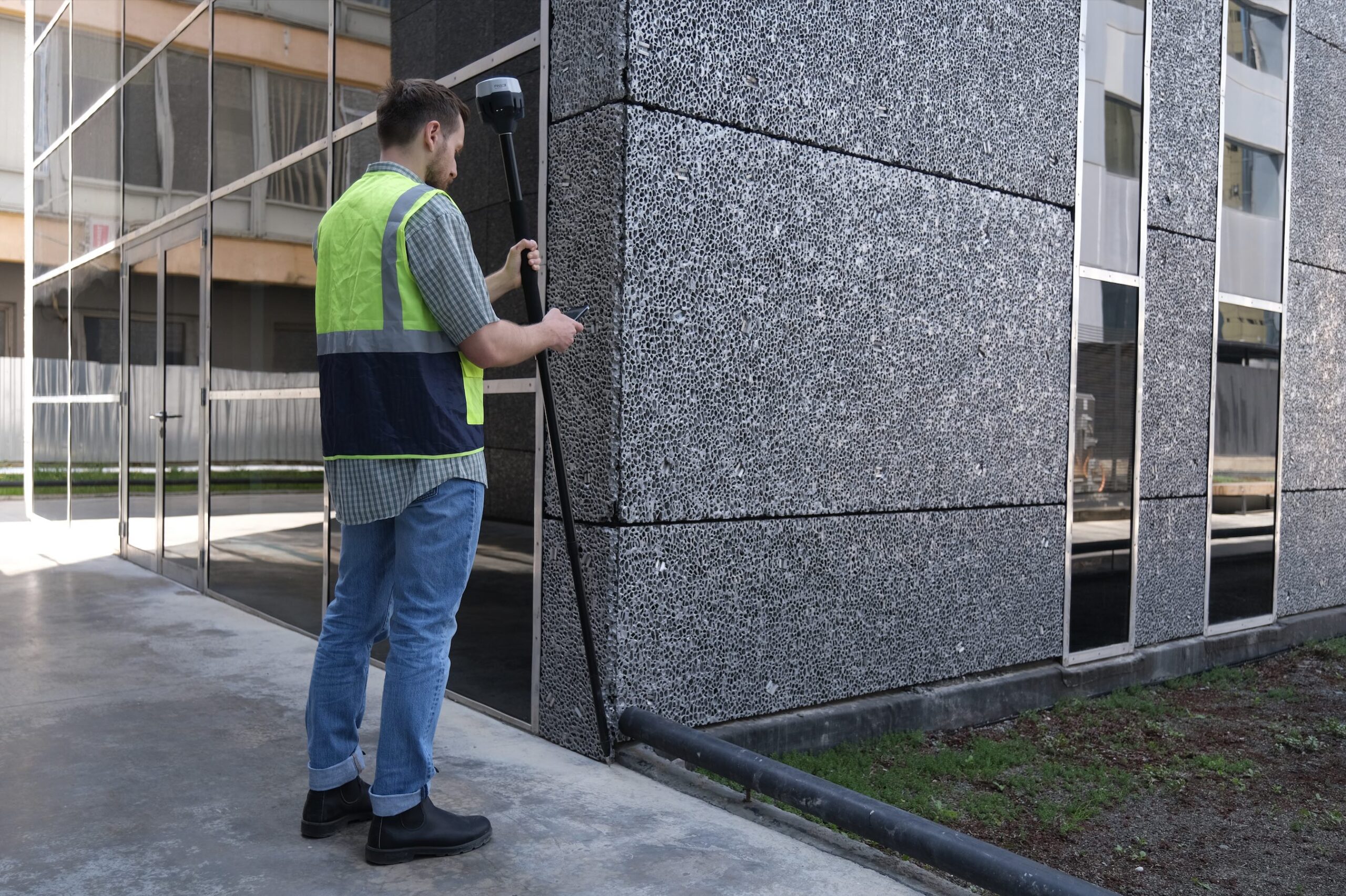

Compensating for tilt and roll angles allows surveyors to collect precise data in various hard-to-reach areas, such as building corners, points on the roadway, at the edge of excavation, or in the water.

Speaking of speeding up the workflow, IMU tilt compensation allows surveyors to save time and effort when collecting data and staking out without the need for a perfectly level setup. This allows for more efficient field operations by reducing the time spent on leveling.

Are there any limitations of IMU tilt compensation?

While IMU tilt compensation offers significant advantages, there are some limitations to consider: signal interference and limited angle range.

In some cases, external factors such as magnetic fields or electromagnetic interference can affect the performance of the IMU-enabled receivers with the magnetometer sensors. This can significantly affect the accuracy of the tilt compensation feature.

In addition, IMU tilt compensation typically has a limited angle range over which it can accurately compensate for tilt. At large tilt angles, the accuracy of the measurements may be compromised.

How accurate are GNSS receivers with tilt compensation?

The accuracy of GNSS receivers with IMU tilt compensation depends on several factors, including the quality of the IMU sensors, the receiver algorithm, and the overall IMU system design. The performance of the receiver also depends on the title angle range.

Emlid Reach RS3 receivers with tilt compensation provide highly accurate results even at large tilt angles. For example, if the baseline is about 1 km, with Reach RS3, you can measure up to 60 degrees of tilt and still be within 2-3 сm of accuracy.

The receiver is magnetically immune. It features IMU-based tilt compensation with no magnetometer on board, which means metal objects and electronics won’t affect the accuracy of Reach RS3.



Estimated accuracy of Reach RS3 within 1 km baseline

Tilt angle, °	Accuracy, mm
10	12
20	15
30	18
40	21
50	24
60	27

Get your Reach RS3 with tilt compensation

Reach RS3 receiver with IMU tilt compensation can streamline your workflow, providing increased accuracy, time savings, and versatility in survey scenarios. By combining the measurements from the GNSS receiver and the IMU sensors, Reach RS3 provides accurate positioning data even at large tilt angles. To learn more about Reach receivers and get Reach RS3 for your projects, visit this page.
